Your Adamstown kitchen is ready for induction when its wiring suits the cooktop you choose, and induction cooktop installation is licensed electrical work. A full-size model usually needs its own hard-wired circuit and sometimes a switchboard upgrade. Low-power models are designed to run on existing cooktop wiring.
As licensed electricians, Kitson Electricians Newcastle wires induction cooktops in kitchens across Newcastle. When a home goes all-electric, the NSW Government notes many people replace the gas cooktop as their last gas appliance. This guide covers power requirements, costs and NSW loans, circuits, gas, benchtops and what happens on installation day.
Induction Cooktop Power Requirements for Adamstown Kitchens
Induction cooktop amps run from a 10 amp plug on Glem's data sheet to a 45 A supply in Fisher & Paykel's planning guide. Check the rating plate and manual before you buy, then compare the main types:
| Cooktop Type | Supply in the Manual | What It Means for Your Kitchen |
| Plug-in power-sharing (60 cm) | 10 amp plug, 2,200 W maximum (Glem) | Usually no new circuit, but the outlet's circuit needs checking |
| Low Current (60 or 90 cm) | 20 A (Fisher & Paykel Low Current) | Can run on existing 20 A cooktop wiring once an electrician confirms it |
| Compact 30 cm | 16 A (Fisher & Paykel) | Check the existing circuit's rating against the manual |
| Full-size 60 cm | 32 A (Fisher & Paykel) | Dedicated hard-wired circuit from the switchboard |
| Full-size 90 cm | 45 A (Fisher & Paykel) | Dedicated circuit plus a check of switchboard capacity |
Those ratings are per model, so one brand can fill several rows. Glem's data sheet explains where the plug-in figure comes from. The GLINDPS shares power between zones to use a maximum of 2,200 W, where induction cooktops can require over 7,000 W.
CHOICE's switching guide says a cooktop below 5 kW total maximum power is commonly classified as low-current, designed to run on existing 20 amp wiring. The catch: cooking settings can be restricted when several zones run at once. In any cooktop installation quote, a low power induction cooktop can save rewiring, while a full-size model usually means a new circuit.
Induction Cooktop Costs and NSW Loans
The NSW Government puts an induction cooktop at $800 to $3,000 upfront, covering the model plus installation. Two quotes for the same cooktop can sit far apart, because the wiring sets the price:
- Dedicated circuit and safety switch: CHOICE's cost figures say a new dedicated circuit and safety switch might cost anything between $600 and $1,200. Expect this line item whenever the cooktop needs its own circuit.
- Switchboard or mains upgrade: If a full switchboard or mains upgrade is needed, CHOICE's switching article says it can cost between $3,000 and $9,000. That's the top of CHOICE's range, so I check the board first.
- Removing the gas connection: Removing an existing gas connection will usually cost $250 to $500, according to CHOICE's switching guide. If you're on Jemena's gas network, its meter charges come separately through your retailer.
- Home Energy Saver loan: Property owners can borrow up to $15,000 at zero interest through the Home Energy Saver loan, repayable over up to 10 years. Applicants must be Australian citizens or permanent residents with a combined taxable household income of up to $210,000. Brighte and Plenti deliver the loans.
- Strata properties: For that loan, Home Energy Saver rules say the strata or owners corporation must agree to the upgrade. Seeking that approval is your job, so request it early.
- Running costs: Comparing induction vs electric cooktop running costs, the NSW Government estimates induction saves $30 a year on electricity. Switching to electric cooking and disconnecting gas saves an estimated $400 a year on gas.
Get the electrician's assessment before you order the cooktop, so the two match.
Dedicated Circuits and Switchboard Upgrades for Induction
An induction cooktop may need a dedicated high-power circuit, sometimes with a switchboard upgrade, says the NSW Government. One check of the manual before you buy shows which path your kitchen takes:
Reading the Rating Plate
When I assess a kitchen, I start with the cooktop's manual and the switchboard. The manual lists rated power in kilowatts and the supply in amps, and Fisher & Paykel's planning guide gives a service rating for each model. Those numbers tell me whether you need a plug, your existing circuit or a new one.
Running a Dedicated Circuit
CHOICE's switching guide says an induction cooktop may require a 20 A, 32 A or even 42 A connection. Without an existing connection, a licensed electrician hard-wires a dedicated circuit from the switchboard that supplies nothing else. Even a plug-in model needs a power point whose circuit has capacity to spare.

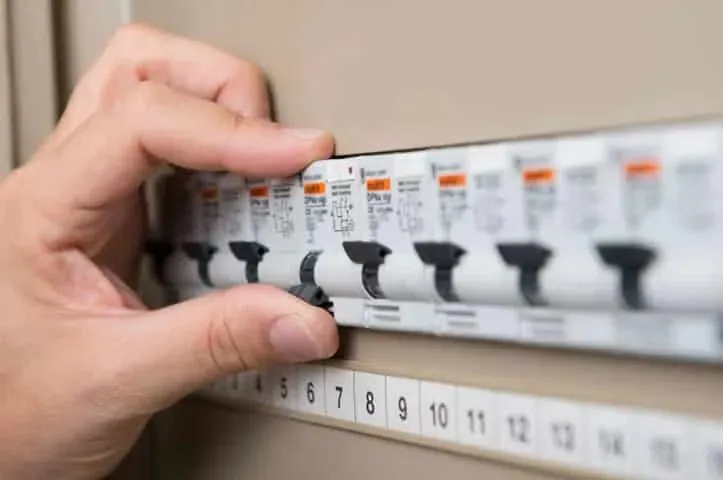

A Full Switchboard
When a board has no spare space for a new circuit breaker, I recommend the switchboard work before the cooktop goes in. The NSW Government notes that this switchboard work comes at an additional cost, and your electrician assesses it. A switchboard upgrade then gives the cooktop circuit a proper home.
More: Do I Need a Switchboard Upgrade? Signs to Look For
With the electrical side planned, the next question is the old gas supply.
Gas Disconnection for an Adamstown Induction Upgrade
A licensed gasfitter must disconnect a gas cooktop, says the NSW Government, but the gas meter is a separate job with a separate bill. Which one does your switch to induction need? It comes down to three parts:
Capping the Gas Line
Your gasfitter caps the old cooktop's gas connection before the induction cooktop is fitted. Gasfitting is a separate trade from electrical work, so the two visits need lining up with the gasfitter you choose. That order keeps your bench from sitting open and unusable between trades.
Disconnection or Abolishment
If your home is on Jemena's gas network, Jemena publishes a disconnection charge of $87.05 excluding GST, with reconnection at $122.28 excluding GST. Abolishment costs $284.99 including GST where no building, renovation or demolition works are planned, and both charges come through your retailer, so your bill may differ. Jemena says disconnections occur within 5 business days of a valid retailer request and aims to complete most abolishments within 20 business days.
Jemena and Your Gas Meter
On Jemena's network, only Jemena and its authorised contractors can disconnect or abolish a gas service. Jemena's own page adds that a plumber must never remove a Jemena meter. You request either job through your energy retailer, ideally early, so the meter work and the gasfitter's visit fall in a sensible order.
If you go gas-free but skip this step, a connected meter keeps the gas account open.
Benchtop Cut-Outs and Clearances for Induction Cooktops
An induction cooktop must fit its benchtop cut-out and keep the maker's clearances. Cutting or drilling an existing engineered stone benchtop with a power tool counts as processing, which requires notifying SafeWork NSW first. Check these points:
- Cut-out size: Fisher & Paykel's planning guide specifies 560 x 490 mm for its 60 cm cooktops and 850 x 490 mm for its 90 cm models. An old gas cut-out isn't guaranteed to match, so check before ordering.
- Engineered stone: SafeWork NSW defines processing as using a power tool to cut, grind, trim, sand, polish or drill the stone. Whoever processes it must lodge an annual online notification, and that work belongs with a stone tradesperson, not a DIY job.
- Rangehood height: The same planning guide sets a minimum 600 mm from the cook surface to the rangehood. Plan any rangehood installation around that height.
- What sits underneath: An oven installed below the cooktop must have a cooling fan, according to Fisher & Paykel's guide. If yours doesn't, plan the oven installation alongside the cooktop.
- Ventilation and combustibles: Fisher & Paykel's planning guide calls for a 5 mm ventilation gap between the benchtop and the cabinetry fronts. Side and rear cut-out edges need 50 mm to any combustible surface, so measure a timber splashback against that figure.
Send the manual's cut-out page to whoever cuts the bench.
Induction Cooktop Wiring Day and Your NSW CCEW
Installation must be done by a licensed electrician, says the NSW Government. One document then proves the job was done properly, so ask for your Certificate of Compliance for Electrical Work (CCEW). The day runs in three stages:
Wiring and Testing
I connect the cooktop to its dedicated circuit with a hard-wired connection, then test the circuit before you switch anything on. If the kitchen is being renovated at the same time, a kitchen electrical fitout puts power points, lighting and the cooktop circuit on one plan.
Lodging the CCEW
From 1 July 2026, all CCEWs must be submitted through the BCNSW eCert portal, according to the NSW Government's CCEW page. Ask your electrician for a copy and keep it with the cooktop's manual and warranty papers. That record shows what work was done and who did it.
The First Cook
Try the magnet test the NSW Government recommends on every pot and frypan you own. If a magnet sticks firmly to the base, the pan works on induction; if not, that pan needs replacing. Run the test before wiring day, so any new pans arrive in time.
A cooktop on the wrong circuit trips the breaker or underperforms, and it shows the first time several zones run together.
More: Why Does My Circuit Breaker Keep Tripping and What To Do?
Planning Induction Cooktop Installation in Adamstown
An induction cooktop in Adamstown starts as an electrical job, not an appliance purchase. Only a licensed electrician can fit it, and a full-size model generally needs its own hard-wired circuit, sometimes with a new switchboard behind it. Low-current models are the exception, running on wiring that already has the capacity.
Check the amps before you choose, since the models here run from a 10 amp plug-in on Glem's data sheet to 45 amps for a 90 cm cooktop in Fisher & Paykel's guide. Budget against the NSW Government's $800 to $3,000 band, then allow extra for any switchboard or gas work. For eligible owners, the zero-interest Home Energy Saver loan spreads that cost.
Areas We Service
Induction cooktop wiring is available across inner Newcastle and the suburbs around Adamstown. You can book an Adamstown electrician, a Merewether electrician or a Charlestown electrician, and the same licensed team covers Kotara Fair and New Lambton. Our Hamilton electrician and Lambton electrician services handle the same cooktop, circuit and switchboard work.
Book an Induction Cooktop Install in Adamstown
Have the cooktop's make and model ready when you call, so your quote covers the right wiring path from the start. Call Kitson Electricians Newcastle on 0438 262 792 for upfront fixed pricing from a fully licensed and insured team.
Every job carries our Lifetime Workmanship Warranty and Clean Home Promise. You'll get $50 off your first service call, plus a free electrical safety inspection valued at $150 with any paid service. You can read more about Anthony Kitson before you book.
Frequently Asked Questions About Induction Cooktop Installation
Here are short answers on wiring, amps, costs, gas and cookware for anyone planning an induction cooktop:
Do I need an electrician to install an induction cooktop?
Yes, installing an induction cooktop in NSW is licensed electrical work, and your electrician lodges a CCEW once it's tested. Hard-wired models also need a circuit checked or run from the switchboard.
Can you plug an induction cooktop into a normal power point?
Only a power-sharing model built for a 10 amp plug, such as Glem's GLINDPS, plugs straight in. Most full-size induction cooktops need hard-wiring to a dedicated circuit, so check the manual first.
How many amps does an induction cooktop need?
Fisher & Paykel lists 20 A for Low Current models, 32 A for its 60 cm cooktops and 45 A for 90 cm models. Check your own manual, since ratings vary by model.
How much does induction cooktop installation cost in NSW?
The NSW Government puts it at $800 to $3,000, covering the cooktop plus installation. Switchboard work costs extra, so get the wiring in your Newcastle home assessed before you choose a model.
Who disconnects the gas when I switch to induction?
Licensed gasfitters disconnect and cap the cooktop's gas line. If you're going gas-free in Adamstown, the gas network's meter disconnection or abolishment is arranged through your energy retailer.
Will my existing pots and pans work on induction?
Hold a magnet to the base of each pan. If it sticks firmly, the pan works on induction; if it doesn't, you'll need induction-compatible cookware before your first cook.
